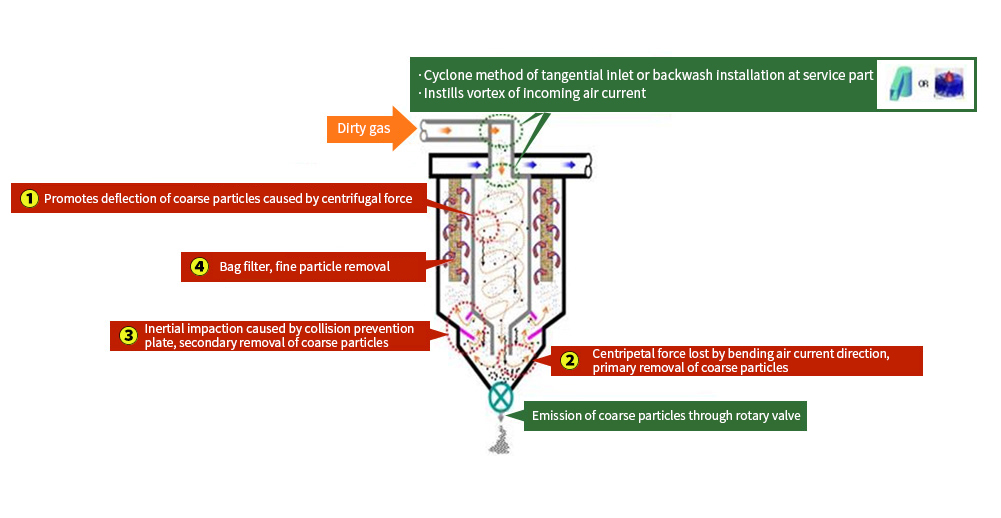

Facility that can significantly enhance the dust collection performance compared to the existing dust collectors with similar treatment capacity as dirty gas with wide particle size distribution can be removed consecutively from big particles per particle size through impaction caused by centrifugal force and inertial force and prevention application and dust collection of bag filter in one space by combining in one unit the cyclone, inertial impaction and bag filter.
Characteristics
Can process coarse particles and fine particles simultaneously
Several types of dust collection are possible
Increasing speed of pressure loss is gentle, enabling treatment of highly concentrated dust
Treatment capacity can be applied in various scopes
Large capacity gas treatment is possible
Lifespan of filter cloth can be extended
Fire in dust collector can be prevented
Field of application
Cement plant, metal processing plant, food plant, ceramic industry, rubber/chemical manufacturing plant, fiber/chemical plant, crop/feed plant, iron/steel, foundry, plant incinerator back-end equipment, dust for boiler, wood and milling plant, cement and stone smelting plant, pre-treatment of incinerator back-end equipment prevention facility, pre-treatment of big particle dust, dust removal in other industrial sites

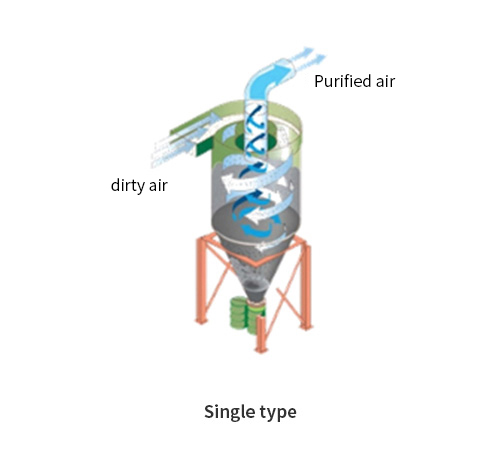

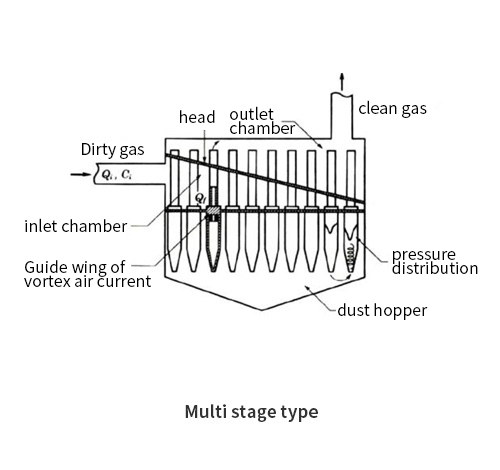

Cyclone Dust Collector
Principle
Overview
Facilities that deposits and collects dusts by separating the particle from gas through inertial force and centrifugal force applied to particles by adding turning movement to the dust within dirity gas generated from the source of dust that is thick and heavy.
Characteristics
Simple and firm structure, less installation cost and maintenance cost
Wide scope of use and can treat large amount of dust
Wide scope of use and can treat large amount of dust
Can be utilized as pre-treatment dust collector
High temperature gas can be treated and the pressure loss is low
Difficult to handle humid dust
Field of application
Dust for boiler, wood and milling plant, cement and stone smelting plant, pre-treatment of incinerator back-end equipment prevention facility, pre-treatment of big particle dust

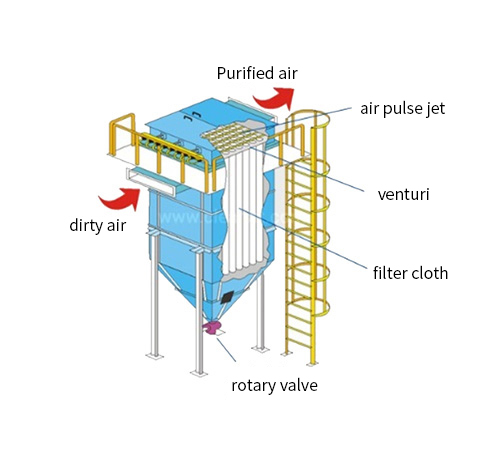

Bag Filter Dust Collector

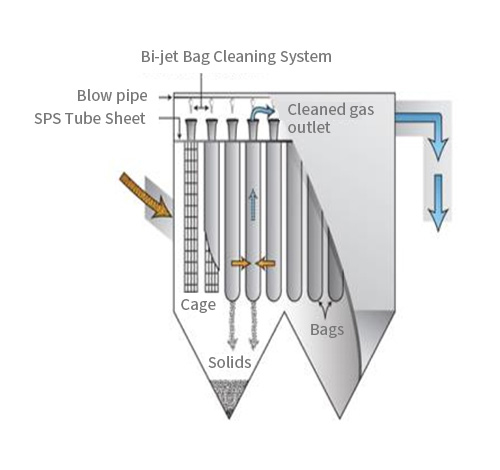

Principle and structure
Overview
As a device that is used most comprehensively among the methods of separating dust particles from exhaust gas, it is based on the principle of inertial impaction, contact and expansion. It is a facility that makes the exhaust gas containing various dust pass through several filters that have been installed in a straight line to remove dust. The material of the filter cloth has to be selected by considering the characteristics, temperature, etc. of the dirty gas. The collected dust undergoes instantaneous compressed air or repeated mechanical cleaning, enabling stable continuous operation.
Characteristics
High dust collection efficiency regarding fine particles
Several types of dust collection are possible
Increasing speed of pressure loss is gentle, enabling treatment of highly concentrated dust
Convenient design and installation
Treatment capacity can be applied in various scopes
Large capacity gas treatment is possible
Filter cloth can be damaged by corrosive and chemical substances at high temperature
Field of application
Cement plant, metal processing plant, food plant, ceramic industry, rubber/chemical manufacturing plant, fiber/chemical plant, crop/feed plant, iron/steel, foundry, plant incinerator back-end equipment, dust removal in other industrial sites
